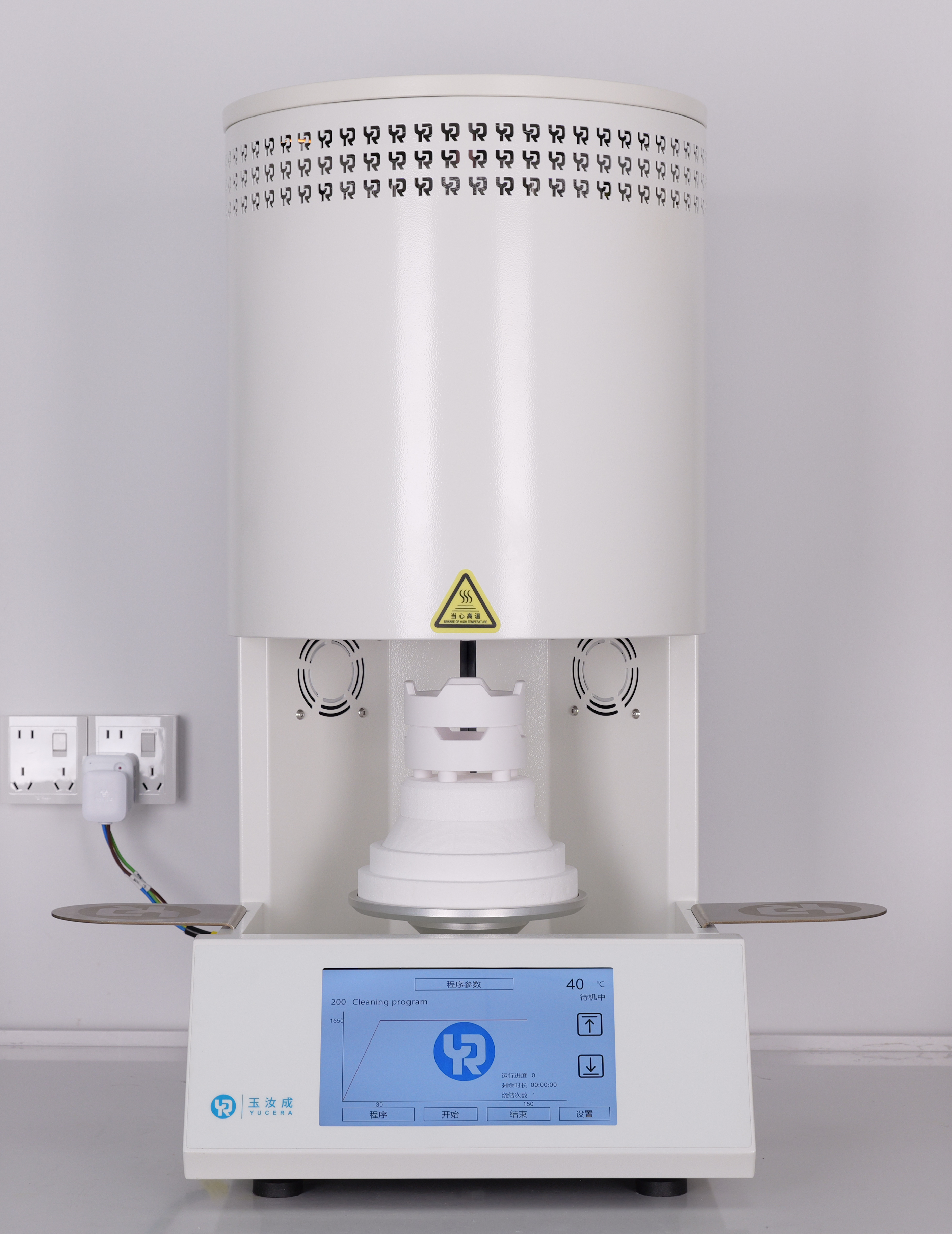

Yucera HS-007 sintering furnace

Short Description:

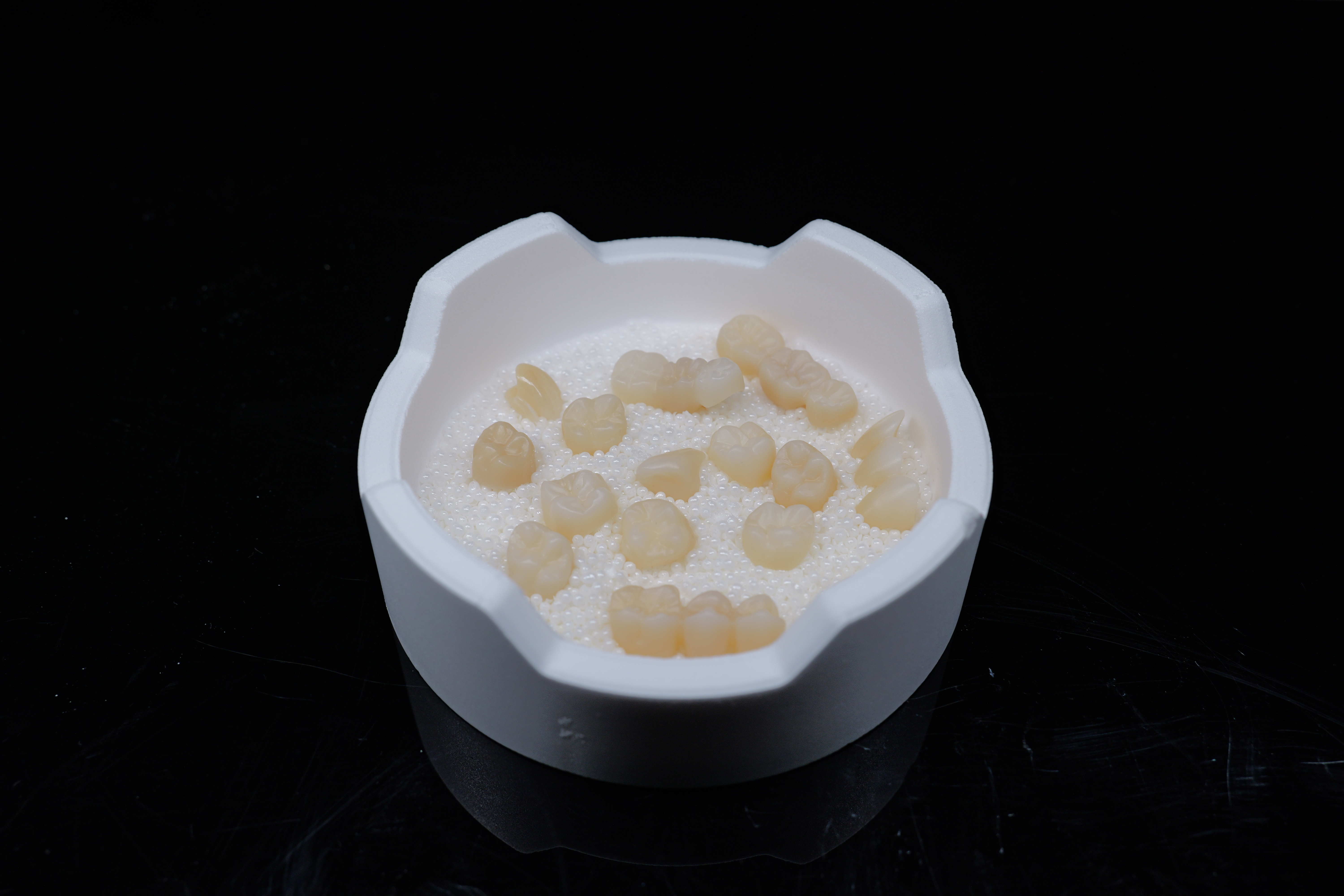

This HS-007 is a fast and slow integrated sintering furnace with the large capacity which can sintered 60 pcs crowns at one time.

And there are 200 sintering program, you also can built in a new sintered curve if you need.

The sintering temperature can up to 1650℃ and the heating rate can achieve 200℃ per minute.

Send email to us

Product Detail

Product Tags

TECHNICAL PARAMETER

Equipment size	420mm568mm816mm	Maximum number of program settings	200
Weight	73kg	Application	Zirconium sintering
Furnace size	Diameter ≤ 105mm, Height < 80mm	Number of Crucibles	2 Layers
Sensor Type	High Precision Type B Thermocouple	Heating element type	4 pcs of 1850 high-purity silicon-molybdenum rods
Power supply	220V士10%，50/60Hz，13.6A	Number of heating elements	4
Rated power	2KW	Control accuracy	≤±2℃
Operating temperature	≤1560°C	Maximum withstand temperature	1650°C
Heating rate	≤200℃/min	Control method	7'' color touch screen
Heating typef	Fast and slow integrated

PRODUCT ADVANTAGES

The YRC-HS007 is a versatile rapid sintering furnace innovatively manufactured by Yucera. Equipped with high-purity molybdenum silicide heating elements, it achieves precise temperature field control for uniform and consistent sintering results. Featuring a 40-minute rapid sintering cycle (when paired with Yucera's 3D Flash zirconia blocks) and a dual-layer crucible design, it significantly enhances restoration efficiency and production capacity. Suitable for diverse scenarios in both dental laboratories and chairside clinical settings, it enables faster treatment workflows, more predictable restoration outcomes, and increased patient satisfaction.
