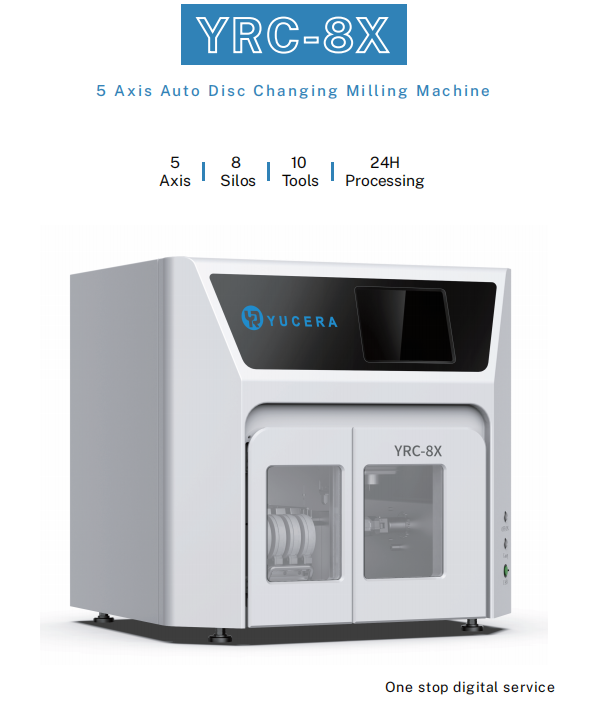

5 AXIS DENTAL MILLING MACHINE

Short Description:

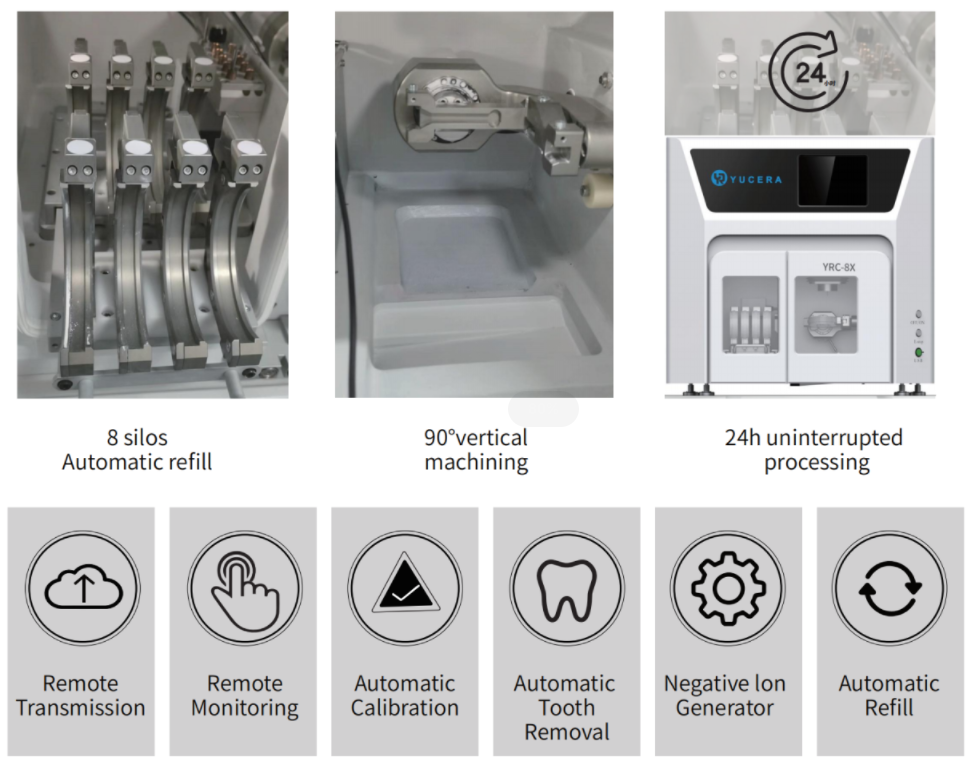

YRC-8Xis a highly automatic five-axis linkage cutting machine for dry type, which can process most materials in dental technology with the highest precision, fully automatic material change, 24-hour uninterrupted production, bringing more efficiency to users experience.

Send email to us

Product Detail

Product Tags

TECHNICAL PARAMETER

Equipment size	850(L)780(W)835(H)mm	Processing methods	Five-axis linkage, dry milling

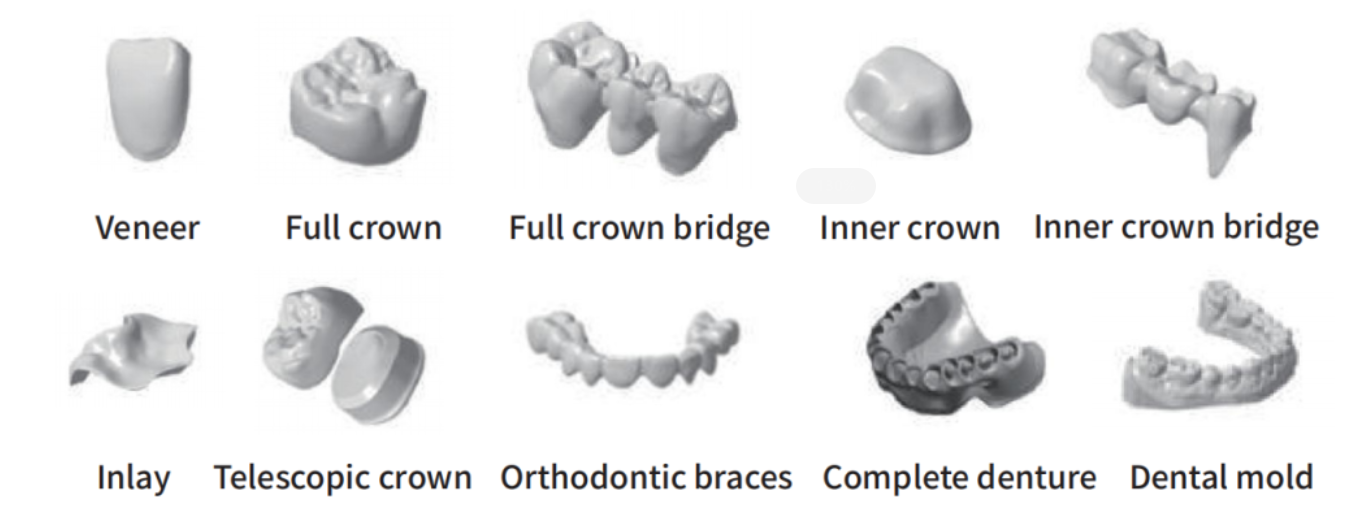

Weight	230KG	Machinable materials	Zirconia, wax, PMMA,PEEK,etc

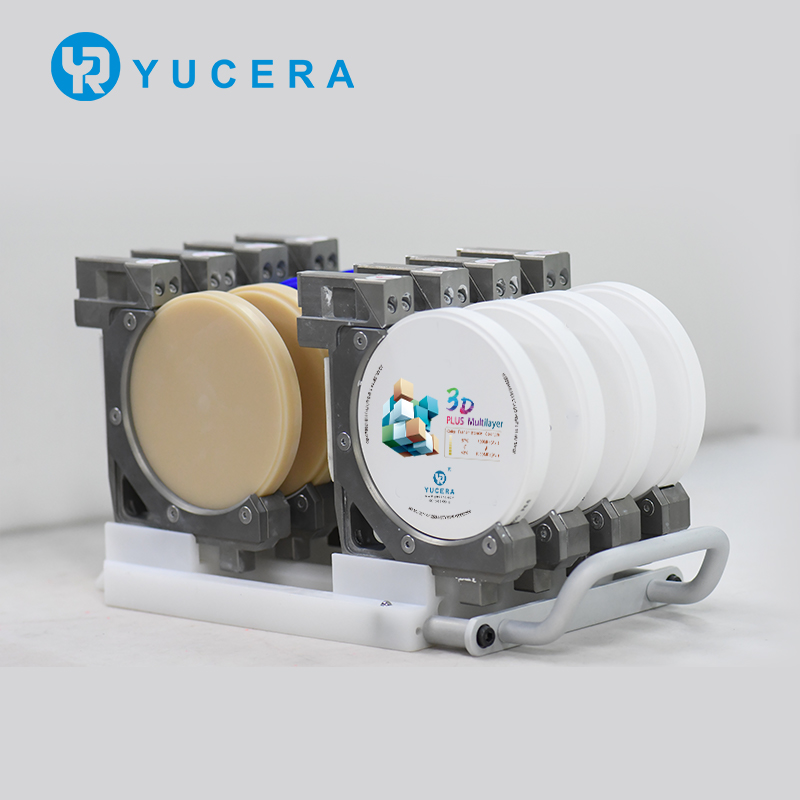

Silo capacity	8 trays	Tool magazine capacity	10
Power and total power	220v/1.5kw	Maximum feed speed	4000mm/min
A-axis working range	土30°	Shank diameter	4mm
B-axis working range	0~360°	Rated power/speed	500W/60000RPM
X-axis workingstroke	110(maximum 400)mm	Eixture form	C-shaped fixture
Y-axis working stroke	150mm	Rated power/speed	220-230V
Z-axis working stroke	100mm	Airsource requirements	>0.5 Mpa dry and clean
