Laboratory CAD CAM Dental Milling Machine Mechanical 5 Axis

Short Description:

Technology Parameter of CADCAM dental milling machine

Length, width and height	Cutting machine:550565460mmMain engine :450250450mm	Processing methods	Five-axis linkage, dry milling
weight	Cutting machine:95KGMain engine:20KG	Processable type	Inner crowns, full crowns, bridges, implant bridges, implant upper restorations, inlays, onlay, veneer, coping etc.
Rotating axis operating angle	A:360° B:±30°	Main axis speed	0-60,000rmp
Total power	800W	Working pressure	4.5-7.5bar(no water, no gasoline )
Cutting precision	0.2mm	Installation conditions	Stable voltage:220-230VStable air pressure≥6.0bar Temperature:15-35℃ Relative humidity＜80%
Tool magazine capacity	5	Transmission interface	USB/Ethernet
Burs specifications	Special props for handle diameter 4mmAutomatic tool change, automatic tool detection	Milling Materials	zirconia blocks , PMMA, Wax,Composite material

Send email to us

Product Detail

Product Tags

Laboratory CAD CAM Dental Milling Machine Mechanical 5 Axis

Dental 5 axis milling machine table dental for zirconia block, PMMA and Wax disc

Shenzhen Yucera Dental Material Co., LTD is a comprehensive enterprise specializing in developing, manufacturing and marketing of Dental Zirconia Ceramic Block, corresponding CAD/CAM equipment, and other related dental products. As professional laboratory materials supplier, we can provide digital dental materials, dental equipment, and full range of digital products and services.

Technology Parameter of CADCAM dental milling machine

Length, width and height	Cutting machine:550565460mmMain engine :450250450mm	Processing methods	Five-axis linkage, dry milling
weight	Cutting machine:95KGMain engine:20KG	Processable type	Inner crowns, full crowns, bridges, implant bridges, implant upper restorations, inlays, onlay, veneer, coping etc.
Rotating axis operating angle	A:360° B:±30°	Main axis speed	0-60,000rmp
Total power	800W	Working pressure	4.5-7.5bar(no water, no gasoline )
Cutting precision	0.2mm	Installation conditions	Stable voltage:220-230VStable air pressure≥6.0bar Temperature:15-35℃ Relative humidity＜80%
Tool magazine capacity	5	Transmission interface	USB/Ethernet
Burs specifications	Special props for handle diameter 4mmAutomatic tool change, automatic tool detection	Milling Materials	zirconia blocks , PMMA, Wax,Composite material

Advantage of CADCAM dental milling machine

1. Horizontal processing VS Vertical machining

Based on the original stable vertical machining, the horizontal milling machine

puts the center of gravity lower.

2. Vertical and horizontal processing are both cradle processi

(Suitable for small precision parts processing).

There is not much difference between these two in the layout

and processing mode, but due to the excellent stability of horizontal processing, the speed can be increased by nearly 20%.

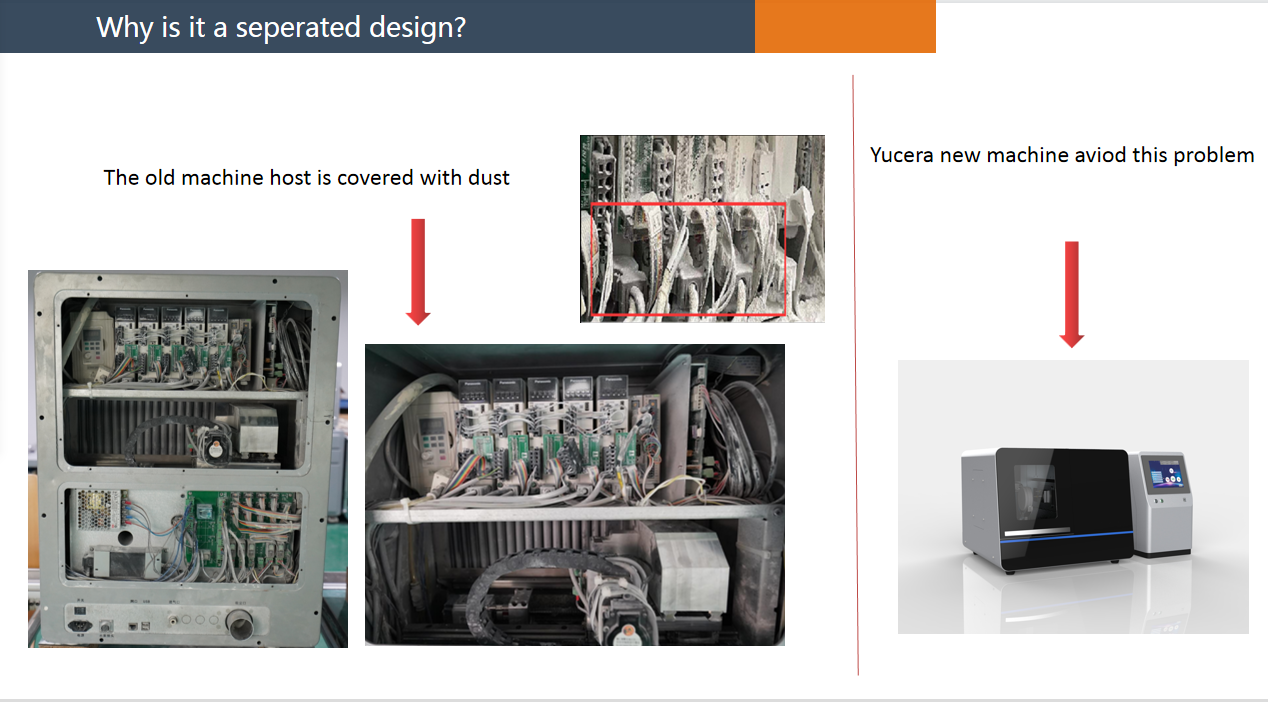

3. Easy to maintain:

*When the all-in-one machine fails, the after-sales maintenance is more complicated. The seperate machine design only needs to replace the processing system to complete the update and maintenance;

*The control system is separated from the processing system to reduce the slight damage caused by dust for the main engine.
